cp4 wired free exit loop sensor 100ft

The CP4 wired exit loop sensor is built for reliable exit automation in residential and commercial gates. This 100ft sensor offers seamless vehicle detection for smooth, hands-free operation.

overview:

The CP-4 is Cartell’s most advanced automatic gate opener, designed as a direct replacement for the CP-3, with enhanced features. The Free Exit System allows you to exit the property effortlessly without needing a remote or keypad. This system is self-contained and integrates directly with any gate opener, eliminating the need for an external output board. It is also compatible with solar-powered gates.

Key Features:

Self-contained unit

Conduit-ready housing

Adjustable sensitivity

Improved heat resistance

Enhanced lightning protection

New, proven digital circuit

Weather-resistant cable

Simplified model selection

Industry-standard wire color coding

Compatible with both AC & DC universal voltage

Works with all gate operators

5-year manufacturer's warranty

Note: This product is available in a variety of cable lengths as listed below. For special orders of different cable lengths, please reach out to us:

Cartell Model CP4-200 (200' Cable)

Cartell Model CP4-300 (300' Cable)

Cartell Model CP4-500 (500' Cable)

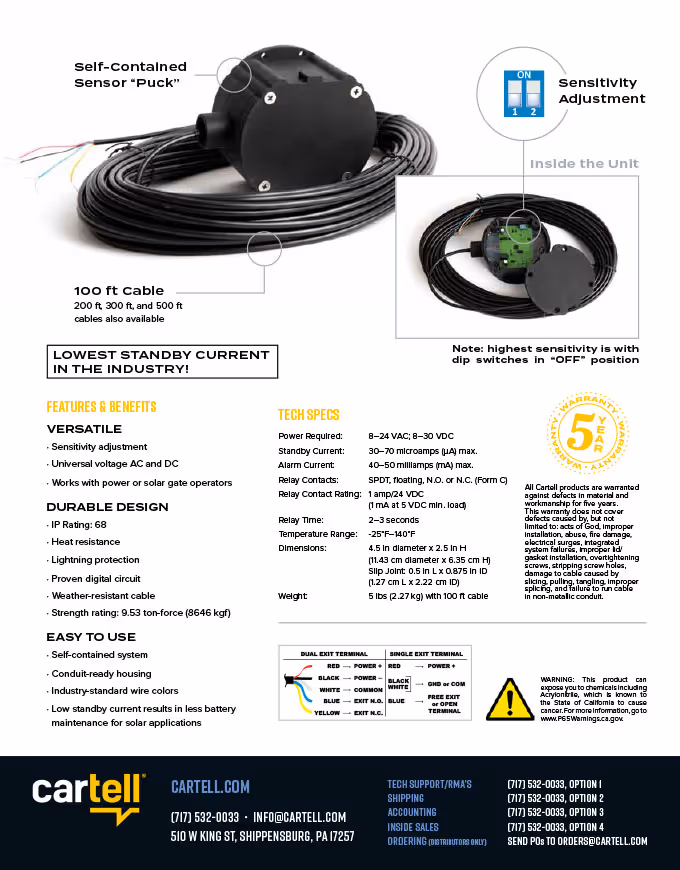

Product Specifications:

Power Requirement: 8–24 VAC or 8–30 VDC

Standby Current: 30–70 Microamps (μA)

Alarm Current: 40–60 Milliamps (mA)

Relay Contacts: SPDT, floating, N.O. or N.C. (Form C)

Relay Contact Rating: 1 amp/24 VDC (1 mA at 5 VDC minimum load)

Relay Time: 2–3 seconds

Enclosure Rating: IP67

Strength Rating: 9.53 ton-force (8646 kgf)

Temperature Range: -25° F. to +140° F. (-32° C. to 60° C.)

Dimensions: 4.5 in. diameter x 3.5 in. height

Weight: 5 lbs. with 100 ft. cable

‍
