This nylon cantilever roller ensures smooth, noise-free operation for chain link gates, perfect for residential and commercial applications in Seattle. overview: Cantilever Gate Rollers: Durable Nylon Cantilever Slide Gate Rollers for 4" Round Posts, compatible with 2-3/8" or 2-1/2" OD Chain Link Gate Frames, perfect for Sliding Gates and Chain Link Gate applications. Quiet and Smooth Performance: These nylon gate rollers are crafted to ensure smooth, quiet movement along the track, with minimal friction and resistance for easy, silent gate operation. Built to Last: Featuring 7" high-density nylon rollers rated to support over 2,000 lbs. The rollers are crafted from solid nylon for durability, and the frame is made of galvanized steel to resist rust and wear. Effortless Installation and Upkeep: Designed with adjustable U-shaped bolts, these rollers allow for simple and secure attachment. All-Weather Reliability: High-quality nylon rollers and sealed bearings ensure reliable, smooth gate operation even in harsh weather conditions.

nylon cantilever roller 2 3-8 chain link gate

Durable nylon cantilever rollers for smooth, quiet operation on chain link gates, ideal for Seattle's residential and commercial setups.

Weld these durable iron gate hinges for a strong, secure installation, built to withstand Seattle’s diverse climate. They’re ideal for custom and repair work on iron heavy duty gates. overview:
Made of 3/4 inch solid stainless steel shaft, precisely grounded and heat-treated to meet Rockwell standards.
Rated for up to 3,000 lbs. per pair, ensuring reliable weight support.
Equipped with dual 5/8 inch ball bearings to ensure smooth and quiet operation.
Designed for continuous cycle use, with self-lubricating features and no need for grease fittings.
Features a specialized design that prevents the gate from coming into contact with the post.
Constructed from durable cold-rolled steel for enhanced strength.
Ideal for installation on steel gates with matching steel mounting posts.

iron gate hinges for welding

These durable iron gate hinges support up to 3,000 lbs, ensuring smooth, long-lasting operation.

Maximize your gate’s potential with the LIF850LM receiver, compatible with a range of gate accessories. Ideal for Seattle properties looking to optimize access control. overview:
The Universal Receiver and its accompanying remote controls are perfect for both gated communities and commercial buildings, utilizing Security+ 2.0™ technology. It incorporates an advanced, exclusive narrow-band multi-frequency radio that significantly reduces radio interference and helps to prevent customer complaints related to weak signal range. Property managers can easily control multiple access points—such as main gates, tenant and visitor doors, commercial doors, and even parking entrances—using one remote solution, providing exceptional range and security. Key Features A single transmitter solution offering convenient access to gated communities, industrial areas, and commercial sites.
Three-channel design allows for expanded remote control capacity: Channel 1 supports 50 remotes, Channel 2 supports 20 remotes, and Channel 3 supports 20 remotes.
Various remote control options available to ensure secure access from a vehicle.
Compact design that works with most gate and commercial door operators.
Weather-resistant version (model 860LM) is available for outdoor use.
Fully compatible with 811LM, 813LM, and all MAX remote control models.
Power input: 12-24VDC or 12-24VAC.
Relay Outputs: Includes 1 FORM C relay and 2 FORM A relays.
Narrow-band frequencies of 310 MHz, 315 MHz, and 390 MHz Security+ 2.0™ with Rolling Code and Encrypted DIP.
Operating temperature range: -35°C to 65°C; Storage temperature range: -40°C to 85°C.
FCC Part 15 compliant.
Comes with a 1-year warranty.
Technical Specifications Relay Output: 3 (N/O and COM)
Operating Temperature: -35°C to 65°C (31°F to 149°F)
Wiegand Output Data Format: N/A
System Capacity: 3 Channels—Channel 1 (50 Remotes), Channel 2 (20 Remotes), Channel 3 (20 Remotes)
Frequency: Security+ 2.0 (Tri-band – 310 MHz, 315 MHz, and 390 MHz)
Warranty: 1 Year

receiver for multiple accessories LIF850LM

The LIF850LM receiver offers reliable access control for Seattle properties, supporting up to 50 remotes.

With enhanced connectivity, the 891 single-button remote is designed for smooth operation with Seattle’s automatic gates, keeping you securely in control.with Seattle’s automatic gates, keeping you securely in control. overview:
Features
Security+ Technology: Rest assured that every press of the button sends a secure code to your garage door opener.
Control for Opener or Light: Allows operation of your garage door opener or MyQ light. Also Referred To As
LiftMaster 012381118915 Compatibility
This remote is designed to work exclusively with Security+2.0® LiftMaster® Garage Door Openers or Gate Operators. Technical Details
GDO Learn Button Color Compatibility: Yellow Circle
Compatible Code Type: Security+ 2.0 Tri-Band
Button Count: 1
Warranty for Accessory: 1 Year

891 single button remote control

The LiftMaster 891 remote offers secure access with Security+2.0, compatible with MyQ lights and garage openers.

Gain full control of your property’s access points with the 894 multi-button remote. Perfect for Seattle’s commercial and residential properties with diverse gate setups. overview:
This remote control is ideal for gated communities. One button can control a gate operator and the others can control a garage door. It can also be programmed to different codes and frequencies. Includes
Directional visor clip
Features
Each button is independently compatible and programmable to Security+ 2.0™ Tri-Band (310/315/390 MHz), Security+® 315 MHz, or Security+® 390 MHz.
Each button can also clone any LiftMaster® DIP code remote control (811LM, 61LM or 361LM).
Features
Check the status and control the garage door and myQ lights from anywhere.
Receive real-time alerts when there is an activity with the garage door or myQ lights.
Create schedules to close the garage door or to have lights turn on/off at designated times.
Use with the myQ app on Android or iOS.
Controls up to 16 MyQ enabled devices.
Accessory Warranty: 1 year
Also known as
LiftMaster 012381998289
Compatibility
LiftMaster myQ enabled Garage Door Openers
LiftMaster myQ enabled Gate Operators
myQ Control Panel (model 888LM)
myQ Lighting Controls (823LM and 825LM)

894 multiple button remote control

Control your property’s access with the 894 remote, featuring 3 buttons for gates and doors.

Handle heavier sliding gates with ease using the RSL12UL, perfect for Seattle’s commercial and large residential properties. Engineered for strength, it’s a great fit for high-security applications.
package includes safety photo eye, backup battery, brackets and 25ft of chain. overview:
The LiftMaster 12VDC is a durable sliding gate operator designed for light-commercial applications, offering exceptional performance and reliability. It is rated for up to 120 cycles daily and supports gates as large as 25 feet in length or weighing up to 800 lbs. Manufacturer's Warranty
Operator Warranty: 3 Years
Technical Specifications: Power: 12VDC or Solar Power
Accessory Power: 12VDC 500mA output (both switched and unswitched options)
Monitored Safety: Includes 3 main board and 3 optional expansion boards
Temperature Range:
Without Heater: -4°F (-20°C) to 140°F (60°C)
With Optional Heater (HTR): -40°F (-40°C) to 140°F (60°C)
Construction Features: Motor: 12VDC continuous-duty motor (P3 rated)
Duty Rating: Designed for up to 120 cycles per day
Chassis: Made of 1/4" gold zinc-plated steel for rust resistance
Reduction Gearbox: Commercial-grade oil bath gearboxes with 15:1 worm gear reduction
Cover: Single-piece UV-resistant polyethylene
Weight: 100 lbs
Gate Capacity: Suitable for gates up to 25 feet in length or weighing up to 800 lbs
Product Summary: The LiftMaster 12VDC is a complete sliding gate operator system designed for light-commercial use. This package includes a 5-foot resistive safety edge, a Photocell Model LMRRUL with protective covers and a 25-foot black oxide chain. This gate operator is equipped with advanced features: Heavy-Duty Rating: Suitable for gates up to 25 feet or 800 lbs, with a 120-cycle-per-day rating, perfect for light commercial settings.
LED Diagnostic Display: Simplifies installation and provides error alerts for easy troubleshooting.
Solar Compatibility: Can be upgraded to include solar power, with panels sold separately.
HOMELINK Compatibility: Works with Version 4 and higher.
Security+ 2.0: Secure, encrypted signal transmission, preventing interference, and supporting up to 50 remote controls.
With its robust construction and UV-resistant cover, this sliding gate operator is designed to withstand heavy use and provide long-term reliability. The gold zinc-plated steel chassis ensures resistance to rust, making it a dependable choice for a variety of settings.

RSL12UL sliding gate opener up to 800lbs

The RSL12UL is a durable sliding gate operator, handling gates up to 25ft/800lbs with solar compatibility.

Manage multiple entry points effortlessly with the 893 remotes, a three-button control ideal for Seattle properties needing versatile access solutions. overview:
This 3-Button Visor Remote Control is designed to operate up to three Garage Door Openers or myQ-enabled light accessories. Featuring Security+ 2.0, it enhances the security of your home. This remote is fully compatible with all LiftMaster Garage Door Openers produced since January 1993. Also referred to as: LiftMaster 012381998937 Key Features: Controls up to three garage door openers or gate operators, and myQ® enabled lighting accessories.
Equipped with Security+2.0™ rolling code technology, minimizing interference from radio waves.
Technical Details: GDO Learn Button Color Compatibility: Green, Orange/Red, Purple, Yellow Circle
Number of Buttons: 3
Code Compatibility: Billion code 390 MHz, Security+ 390 MHz, Security+ 315 MHz, Security+ 2.0 Tri-Band
Accessory Warranty: 1 year
Compatibility: All LiftMaster Garage Door Openers manufactured since January 1993, along with 315 MHz Security+® LiftMaster and Elite® Gate Operators.
Compatible Models Include:
LiftMaster 8500W
LiftMaster 8500
LiftMaster 87504-267
LiftMaster 87802
LiftMaster 8587W
LiftMaster 84602
LiftMaster 84501
LiftMaster 8365W-267

893 triple button remote control

The LiftMaster 893 3-button remote offers versatile control for up to three openers or myQ lights, enhancing security with Security+2.0.

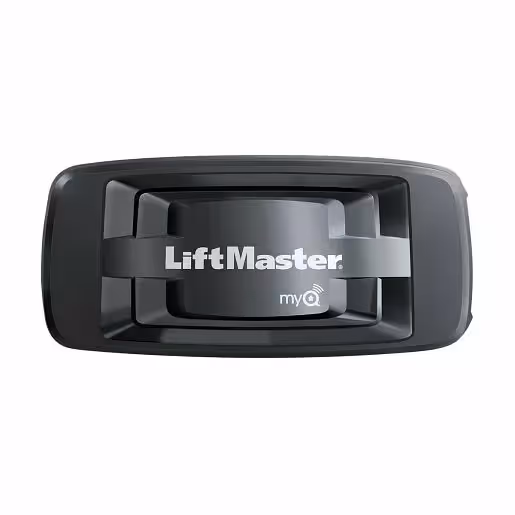

Link your gate to your smartphone with the 828LM Internet Gateway, offering Seattle homeowners remote gate control for unmatched convenience and security. overview:
The LiftMaster Internet Gateway enables smartphone control for any myQ-enabled devices, including garage door openers, commercial door operators, gate systems, and lighting. It allows users to remotely monitor and control these devices, ensuring they never have to worry about whether their garage or gate is open. This provides reassurance to customers, knowing that the main access point to their home or business is secured. Key Features: Monitor and control your garage door and myQ lights from anywhere.
Receive instant alerts on any activity related to the garage door or myQ lights.
Set up schedules to automatically close the garage door or turn lights on/off at specific times.
Compatible with the myQ app, available on Android and iOS.
Supports up to 16 myQ-enabled devices.
Accessory warranty: 1 year.
Alternate Product ID: LiftMaster 012381998289 Compatibility: LiftMaster myQ-enabled garage door openers
LiftMaster myQ-enabled gate operators
myQ Control Panel (model 888LM)
myQ Lighting Controls (models 823LM and 825LM)

828LM internet gateaway

The LiftMaster 828LM Internet Gateway lets Seattle homeowners control gates and lights via smartphone.

Upgrade your property’s security with the Cellgate Watchman 450 intercom system, tailored for residential and commercial automatic gates. overview:
Hardware Features: Full Numeric Keypad – Supports up to 5,000 local codes and 64,000 remote codes. Access codes can be assigned to visitors for long-term, limited use, or temporary access. Authorized users can easily configure them in under 60 seconds using the TrueCloud Connect™ platform. Includes one Wiegand 26-bit input. Ideal for properties where devices like RFID/proximity cards are provided to residents. Built-in camera streams live video of visitors at the gate, capturing still images when someone uses the keypad or initiates a call for entry, as well as on-demand snapshots via the CellGate app. Enhanced Security – Video and photos enable property owners and authorized users to visually verify the identity of visitors. Backlit LCD display and keypad for improved visibility in low-light conditions. Mounting options: pedestal or recessed mount. Hardware dimensions for the W450: Height: 11.9″, Width: 6.1″, Depth: 4.7″ to 5.5″. Aesthetic Choices – Choose the best mounting option based on the installation environment. W450 Optional Enhancements: Up to three additional external cameras can be added for broader coverage of entry points. Property owners can capture photos from a second angle, including vehicle and license plate details. Integrates with the Watchman WXP Wiegand Expansion Panel or the OmniPoint Access Control Solution. Ideal for commercial setups, expanding entry point management to other areas of the property with fob/card readers or RFID technology. Solar Power Kit Available – Suitable for areas where traditional electric power is unavailable. W450 Video & Voice Capabilities: View live streaming video of visitors at the gate via the smartphone app. Engage in real-time voice communication with visitors. Full voice call capabilities for screening visitors before granting access. Auto-dials up to six app video contacts and three voice-only phone numbers. Ensures visitors reach someone directly, increasing access convenience. Voice-only calls can be received without the app, making access management even simpler. VMI – VoiceMail Intelligence – The system detects when a call reaches voicemail and automatically proceeds to the next number on the call list, ensuring no visitor is left stranded. CellGate App: Self-activate your W450 hardware through the CellGate app. New users can register their devices, select their cellular plan, and test the system at their convenience. Control gates and entry points remotely through the CellGate app. Receive push notifications with photos of access attempts via text or email, improving security and tracking. Remotely open or close the gate, set hold periods, and capture photos of the area, all via the app. Gate Sensor – Alerts you if the gate remains open for more than 3 minutes (prop open notification), ensuring better security. Compatible with iOS and Android smartphones, working with most devices. Networks: Compatible with Verizon and AT&T LTE cellular networks. CellGate is the only access control provider whose products support both major LTE networks in the U.S. A monthly service charge is required for ongoing access to the CellGate app, TrueCloud Connect™, and data transmission services via cellular or internet.

intercom cellular system cellgate watchman 450

Secure entry with live video, remote access, app control, and code support.

Built for effortless sliding, this V-groove wheel supports smooth gate movement, making it ideal for Seattle properties with heavy-duty gates. overview: DURABLE STAINLESS STEEL CONSTRUCTION: Crafted from stainless steel, this groove wheel is designed for excellent wear and heat resistance, reliable low-temperature strength, and impressive mechanical durability. BUILT-IN DOUBLE BEARING: Equipped with an internal double bearing, this wheel minimizes friction, enabling smoother and more flexible movement, offering superior maneuverability. HIGH LOAD CAPACITY: These wheels can support up to 800lbs, providing reliable strength for heavy-duty use. SLEEK, MODERN DESIGN: Featuring a polished stainless steel finish, this wheel’s sleek appearance complements a wide range of equipment styles. VERSATILE APPLICATIONS: Ideal for use with powered gates, rolling gates for pets or children, industrial carts, assembly stations, storage containers, racks, and more.

v groove wheel for sliding gate 1.5 inches

V-groove stainless steel wheel supports smooth, heavy-duty gate movement, with 800lbs capacity.

The LA400 double swing gate opener for medium size swing gates, brings strength and elegance to your driveway, handling heavy-duty swing gates. Designed for Seattle’s variable weather, it’s a powerful solution for residential properties.
package includes safety photo eye, control box with backup batteries, brackets and 2 arms. overview:
The LiftMaster LA400PKGUL offers a comprehensive dual swing gate opener kit, equipped with all necessary components for easy installation. It is constructed using LiftMaster’s trusted materials and is designed to handle larger gates, supporting up to 850 lbs. Performance Specifications Power Source: 24VDC or solar power, with a standard 120/230V single-phase control box
Accessory Power: 24VDC, 500mA output, with both switched and unswitched power options
Safety Monitoring: 3 main boards and 3 optional expansion boards for safety features
UL Classification: I, II, III, IV
Gate Speed: Opens 90 degrees in 17-17 seconds
Construction Specifications P3 Motor®: 24VDC motor designed for continuous duty
Operator Duty Cycle: Rated for 100 cycles per day
Chassis: Made with 1/4" gold zinc-plated steel to prevent rusting
Worm Gear: Precision-machined all-metal gear drive for reliable operation
Operator Weight: Actuator arm weighs 19 lbs, standard control box weighs 13 lbs, including (2) 7Ah batteries
The LiftMaster LA400PKGUL is a dual swing gate operator featuring dependable performance and several built-in features. This complete kit includes everything you need to begin your installation, such as a primary and secondary arm, battery backup with control board and a monitored retro-reflective photo eye. Notable features of this dual swing gate system include: Anti-Tailgate: The optional anti-tailgate feature ensures the gate quickly closes behind vehicles, preventing unauthorized access.
Security+ 2.0 Technology: Encrypts the gate’s signal to protect against interference, while extending the range for remote control use.
Safety Photo Eye: The retro-reflective photo eye detects obstructions, preventing damage to vehicles or injury to individuals by reversing the gate.
App Integration: Use the myQ app to control and monitor the gate opener remotely, allowing you to close gates with just a tap.
Solar-Ready: The system can be equipped with solar panels (sold separately), providing additional backup or primary power when needed.
Crafted for durability, this gate opener boasts a heavy-duty 24VDC continuous-duty motor, a robust cast aluminum housing, and is rated for 100 cycles per day. It supports gates up to 16 feet long or weighing up to 850 lbs. The battery backup ensures continued operation during power outages. Additional Information: Outswing Applications: For gates that swing outward, the LiftMaster PUSH TO OPEN Bracket Kit Model 50-19503 is required (not included). This bracket kit includes a three-piece bracket set and hardware. Please select this option below if needed. Details can be found in the “Product Literature Tab.”
Advanced Features: For additional features such as external loops, auxiliary relays, or expansion control boards, you may need the Model K1D8387-1CC Expansion Control Board.
Important Note: Manufacturer capacity ratings are calculated without considering wind load. Gate performance can be significantly affected by wind conditions, potentially causing damage. If your area experiences frequent high winds, consider using a pad mount operator like the CSW24UL. For assistance in selecting the right operator based on local weather conditions, contact us. Wind damage is not covered by warranty.

LA400 double swing gate openers system

powerful dual swing gate opener with backup battery, safety features, and app integration.

A single-button remote control for effortless gate access, the 811 is a simple yet effective solution for Seattle-area homeowners looking for quick, reliable entry. overview:
LiftMaster Single-Button Programmable DIP Remote Control
This remote control can be programmed to multiple frequencies: Encrypted Security+2.0 DIP (811LM) - Default setting
315 MHz DIP (361LM)
390 MHz DIP (61LM)
Perfect for large-scale applications like gated communities or commercial settings that require many remote controls for shared entrances. It is compatible for cloning with the 892LT & 894LT Learning Remote Controls.
Programming with previous technologies is simple and quick. Manufacturer's Warranty:
Accessory Warranty: 1 Year Technical Specifications Number of Buttons: 1
Frequency: Security+2.0 Encrypted DIP; 315 MHz LiftMaster DIP; 390 MHz LiftMaster DIP

811 single button remote control

The LiftMaster 811 remote offers secure, single-button access for gate entry with multi-frequency compatibility.

Perfect for sturdy gate installations, our powder coated strong 4x4 iron posts offer reliable support for Seattle’s residential and commercial gates. overview:
Easy maintenance with Fortress Guard powder-coated finish for added durability.
Replace damaged pickets easily without the need to disassemble or replace the entire fence.
Ideal for dig-in installation.
Resistant to various weather conditions.
UV-resistant to withstand sun exposure.
Built to resist rust for long-lasting performance.

iron gate post 4X4, 8ft tall

Durable 4x4 iron posts with powder coating, offering easy maintenance and weather resistance.

For larger gate installations, our powder coated strong 6x6 iron posts are designed for maximum strength, providing Seattle gates with durable support. overview:
Easy maintenance with Fortress Guard powder-coated finish for added durability.
Replace damaged pickets easily without the need to disassemble or replace the entire fence.
Ideal for dig-in installation.
Resistant to various weather conditions.
UV-resistant to withstand sun exposure.
Built to resist rust for long-lasting performance.

iron gate posts 6X6, 8ft tall.

Durable 6x6 iron posts with powder coating, offering strength, weather resistance, and easy maintenance.

Keep your sliding gate on track with this durable, 12ft metal V track, designed to provide smooth operation for Seattle properties. overview: These V tracks are crafted from high-quality, durable galvanized steel, perfect for operating any chain or rack-driven sliding gate. Each box includes two 6-foot sections, totaling 12 feet of track. Compatible with all V-groove style wheels, the track is 1.5-2 inches wide, meeting the industry standard for V tracks. The package comes with two 6-foot sections of track and anchor mounting bolts.

metal v track for sliding gate 12ft

Durable 12ft galvanized steel V track for smooth sliding gate operation, ideal for Seattle properties.

Secure your home with the LA500 for medium-heavy single swing gate opener, designed to accommodate heavier gates and optimized for seamless operation, ensuring your Seattle property is always safe.
package includes safety photo eye, control box with backup batteries, brackets and one arm. overview:
BATTERY BACKUP: Provides up to 500 charging cycles or 24 days of standby power.
myQ® TECHNOLOGY: Enables secure remote monitoring and control of your gate operator via the myQ app from anywhere. Included Items: Primary Arm LA500DC
Battery Backup with control board
Monitored Retro Reflective Photo Eye LMRRUL
Key Features: LED Diagnostic Display: Simplifies both installation and troubleshooting.
Solar-Ready, Ultra-Reliable System: Effortless solar conversion provides power when needed and operates with high energy efficiency at other times to optimize solar performance.
Programmable Auxiliary Relays: Easily add extra features like warning lights or alarms.
Bi-Part Delay: Monitors and adjusts the speed and position of each gate wing to ensure the primary gate closes last.
Synchronized Close: Ensures simultaneous gate closure.
Pre-Motion Warning Alarm: Activates onboard alarm 3 seconds before the gate begins moving.
Anti-Tailgate: Prevents unauthorized access by pausing the gate when a vehicle interferes with the interrupt loop or photo beam. The gate resumes closing once the vehicle backs up.
HomeLink® Compatible: Version 4 and newer.
Security+ 2.0® Onboard Radio Receiver: Supports up to 50 remote controls (unlimited with 811LM/813LM).
Manufacturer’s Warranty: Operator Warranty: 2 years
Technical Specifications: Power: Full-time AC-run operation (120V/230V Single Phase)
Accessory Power: 24VDC, 500mA output (both switched and unswitched power available)
Monitored Safety Inputs: 3 on the main board, 3 on the expansion board
Temperature Range: -4°F (-20°C) to 140°F (60°C)
UL Usage Classification: I, II, III, and IV
Gate Travel Speed: 90-degree opening in 15-17 seconds
LiftMaster LA500PKGUL:
A swing gate opener that requires 120VAC for initial power. The main board and gate arm run on 24VDC. The unit converts 120VAC to 24VDC to keep the built-in battery charged for gate operation. Construction Details: P3 Motor®: Continuous-duty 24VDC motor
Operator Duty Rating: Continuous duty, 300 cycles per day
Chassis: Commercial-grade aluminum die-cast housing
Worm Gear Reduction: Precision-machined all-metal gear in a sealed lubrication housing
Operator Weight: 35 lbs for the actuator arm; 13 lbs for the standard control box
Included Batteries: (2) 7Ah batteries
Recommended Gate Specifications:
Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs. Notes:
Warning: The manufacturer's stated capacities do not account for wind factors. Depending on wind strength and gate design, the operator’s capabilities may be significantly reduced, potentially causing irreversible damage. If you experience regular windy conditions, we recommend a pad-mount operator like the CSW24UL. If unsure about which operator is best for your location's weather conditions, contact one of our sales advisors. Wind damage is not covered under warranty.

LA500 single swing gate opener system

The LA500 is a reliable, solar-ready gate opener with remote control, safety features, and battery backup.

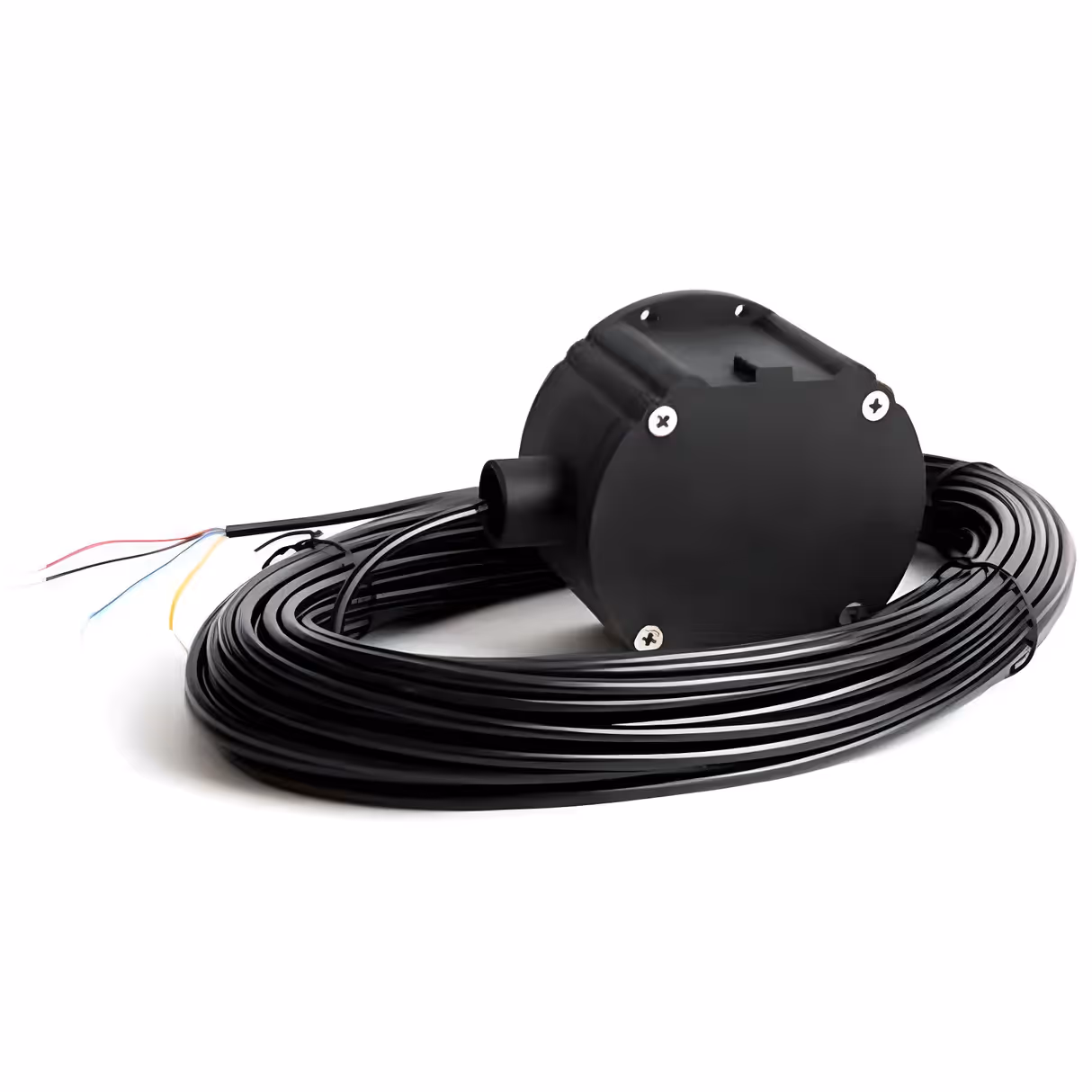

The CP4 wired exit loop sensor is built for reliable exit automation in residential and commercial gates. This 100ft sensor offers seamless vehicle detection for smooth, hands-free operation. overview:
The CP-4 is Cartell’s most advanced automatic gate opener, designed as a direct replacement for the CP-3, with enhanced features. The Free Exit System allows you to exit the property effortlessly without needing a remote or keypad. This system is self-contained and integrates directly with any gate opener, eliminating the need for an external output board. It is also compatible with solar-powered gates. Key Features: Self-contained unit
Conduit-ready housing
Adjustable sensitivity
Improved heat resistance
Enhanced lightning protection
New, proven digital circuit
Weather-resistant cable
Simplified model selection
Industry-standard wire color coding
Compatible with both AC & DC universal voltage
Works with all gate operators
5-year manufacturer's warranty
Note: This product is available in a variety of cable lengths as listed below. For special orders of different cable lengths, please reach out to us: Cartell Model CP4-200 (200' Cable)
Cartell Model CP4-300 (300' Cable)
Cartell Model CP4-500 (500' Cable)
Product Specifications: Power Requirement: 8–24 VAC or 8–30 VDC
Standby Current: 30–70 Microamps (μA)
Alarm Current: 40–60 Milliamps (mA)
Relay Contacts: SPDT, floating, N.O. or N.C. (Form C)
Relay Contact Rating: 1 amp/24 VDC (1 mA at 5 VDC minimum load)
Relay Time: 2–3 seconds
Enclosure Rating: IP67
Strength Rating: 9.53 ton-force (8646 kgf)
Temperature Range: -25° F. to +140° F. (-32° C. to 60° C.)
Dimensions: 4.5 in. diameter x 3.5 in. height
Weight: 5 lbs. with 100 ft. cable

cp4 wired free exit loop sensor 100ft

Reliable, hands-free gate exit automation with enhanced durability and compatibility.

Built for heavier gates, the LA500 for medium-heavy swing gates, offers a powerful solution for Seattle’s homeowners, blending reliability with sophisticated access control in a sleek double swing design.
package includes safety photo eye, control box with backup batteries, brackets and 2 arms. overview:
The LiftMaster LA500PKGUL is a high-performance dual swing gate opener that comes with everything you need for installation. Designed for durability and reliability, this system is ideal for large gates and commercial applications. Performance Specifications: Power: AC-run operation with 120V/230V Single Phase for continuous performance
Accessory Power: 24VDC, 500mA output, providing both switched and unswitched power
Monitored Safety Inputs: Includes 3 main board inputs and 3 expansion board inputs
Temperature Range: Operates effectively between -4°F (-20°C) and 140°F (60°C)
UL Usage Classification: Rated for Classes I, II, III, and IV
Gate Travel Speed: Opens 90 degrees in 15-17 seconds
Construction Specifications: Motor: 24VDC continuous-duty motor (P3 MOTOR®)
Operator Weight: 35 lbs for the actuator arm, 13 lbs for the standard control box, includes two 7Ah batteries
Chassis: Heavy-duty aluminum die-cast housing built for commercial use
Gear Reduction: Features a precision-machined all-metal worm gear with contained lubrication
Product Overview: The LiftMaster LA500PKGUL dual swing gate opener is packed with features designed for both functionality and customization. The complete package includes the primary and secondary arms, a battery backup and a photo eye for safety. Key Features: Adjustable Gate Opening and Closing: Customize gate closing to ensure gates operate simultaneously or set to close the primary gate last.
Warning Alarm: An optional alarm sounds three seconds before gate opening, alerting vehicles to keep clear.
Anti-Tailgate Feature: The gate closes swiftly to prevent unauthorized vehicles from tailgating and following.
Security +2.0 Radio Receiver: This advanced receiver encrypts signals, extending the range and eliminating interference. It supports up to 50 remotes.
Safety Photo Eye: The built-in photo eye detects obstacles and reverses the gate’s movement, preventing damage to vehicles or people.
MyQ App Integration: Control the gate remotely from anywhere using the LiftMaster MyQ App.
Built to last, the LA500PKGUL features a robust aluminum die-cast housing, making it suitable for gates up to 18 feet in length and weighing up to 1,600 lbs. It is capable of handling 300 cycles per day. Additionally, the battery backup provides up to 500 cycles or 24 days of standby power if required. Important Notes: Wind Considerations: Manufacturer’s listed capacities are calculated without considering wind factors. Strong winds can significantly affect the gate’s operation, potentially causing damage. If your area experiences high winds, we recommend a pad-mounted operator like the CSW24UL. For more guidance on selecting the right operator for your conditions, please contact us. Note that wind damage is not covered under warranty.

LA500 double swing gate openers system

LiftMaster LA500: Dual swing gate opener for gates up to 18ft, 1,600 lbs, with advanced security.

The KPW5 keypad provides durable, straightforward access control, ideal for residential gate installations. This reliable solution blends simplicity with security for peace of mind, tailored to Seattle’s homeowner needs. overview:
The LiftMaster KPW5 is designed to provide exceptional performance in challenging environments, offering a modern, streamlined access solution that's easy to install and operate. It’s ideal for residential gate access as well as smaller commercial gate and door applications. Key Features: Compatible exclusively with Security+ 2.0 operators manufactured after 2012
Equipped with 5 permanent PINs and 10 customizable temporary PINs, making it perfect for both residential and small commercial uses; temporary PINs can be configured for 1 to 9 uses
Allows for the removal of a single PIN while maintaining access for other users
Sealed electronics meet NEMA 4X water protection standards
Industry-leading 5-year lithium battery ensures reliable performance even in colder climates (based on 25 activations per day)
Durable high-impact polycarbonate front cover, ideal for tough outdoor conditions
Blue backlit metal keypad provides ease of use in low-light settings
Fully enclosed internal antenna offers enhanced protection against vandalism and the elements
Easy to install either surface-mounted or on a standard pedestal
LiftMaster KPW5 Programming Instructions Before performing any programming steps, ensure the Wireless Commercial Keypad is in programming mode. The keypad's backlight will remain illuminated when in programming mode. If an incorrect code is entered while in programming mode, an error tone will sound, but programming mode will remain active. If there is no activity for 60 seconds, the keypad will exit programming mode automatically. To operate the Wireless Commercial Keypad, you will need the 6-digit Master Code, which prevents unauthorized system access. The factory default code is 888888, but it is recommended to change this to a unique code for security. Important: An error tone will be triggered if you exceed the maximum number of PINs or attempt to program a PIN that is already stored in memory. Programming to the Operator: Before programming the gate operator, both the Master Code and a PIN must be set.

KPW5 simple punch keypad

easy-to-use access control for residential and small commercial gates.

The Optex OVS-01GT sensor’s 18-foot range offers dependable, wireless exit control, making it perfect for both compact and spacious Seattle properties with automatic gates. overview:
The OVS-01GT by OPTEX is built to accurately detect both stationary and moving vehicles, while effectively ignoring most pedestrian traffic. It also removes the need for complex ground loop installations, eliminating the need for concrete cutting. This sensor can be positioned between 2 to 3 feet above ground level, capable of detecting both small and large vehicles. Ideal for gate and barrier arm systems, the OVS-01GT is mounted above ground near the gate operator, typically on a pole or post. It offers customizable detection with 8 adjustable range settings, 5 sensitivity levels, and one-touch calibration. For security gate applications, it is essential that the sensor detects only vehicles, while ignoring human motion. The OVS-01GT provides 5 selectable menu options to filter out human movement. Adjustable microwave detection patterns (blue, above) cover distances from 6.56 to 18.04 feet, with an ultrasonic sensor (purple) designed for short-range detection. The OVS-01GT includes 5 sensitivity levels for precise customization. Installation of the OVS-01GT is quick and does not require halting traffic through the driveway. The device mounts effortlessly and connects directly to the gate operator without the need for additional loop detectors. No special programming tools are needed. Its simple menu with visual guides ensures an easy and rapid setup.

optex-ovs-01gt-18ft range free exit loop sensor

18-foot wireless range for seamless exit control, ideal for Seattle properties with automatic gates.

Wireless exit control made easy! The CW-SYS sensor integrates effortlessly with Seattle’s best automatic gate systems for streamlined, no-hassle exiting—perfect for homeowners. overview:
The Cartell CW-SYS Wireless Driveway System is an innovative solution for integrating vehicle detection wirelessly into your existing security or home automation setup. It enables easy connection to various devices such as cameras, sounders, and additional accessories. This wireless system can also be paired with an electric gate opener for use as a free exit system, suitable for both residential and commercial properties. The sensor puck comes in a compact, self-contained design with a built-in transmitter and antenna, offering an impressive range of up to 1,000 ft. Installation is quick and straightforward, requiring no trenching. You can typically complete the setup in under an hour by simply mounting the sensor puck on a stable object, such as a post, or positioning it in the ground near the driveway or entryway. Package Includes: Sensor Puck
Integrator with 3’ Coaxial Antenna Cable
(2) Auger Screws for In-Ground Installations
(2) CR123A Batteries with Battery Terminal Clips
Terminal Block Screwdriver
Key Features: Highly adaptable
Quick and simple installation
Suitable for all types of driveways
Weather-resistant construction
Superior radio range with long-lasting battery life

cw - sys wireless free exit loop sensor

Easy, trench-free exit control with 1,000 ft range—ideal for secure gate exits.

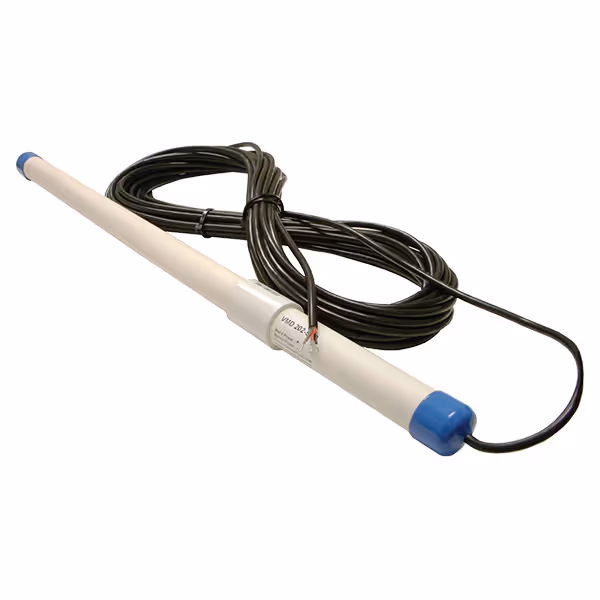

With a 50-foot range, the EMX VMD202 wireless exit sensor ensures reliable detection without wiring, ideal for residential and commercial gate systems in Seattle looking to optimize traffic flow. overview:
The EMX VMD202 Driveway Sensor Probe [EMX-2810-1 & EMX-2803-2] represents a breakthrough in motion-sensing technology, providing exceptional security for your driveway. After extensive research, development, and field testing over a span of three years, EMX is excited to introduce the VMD202 as the most advanced single-piece motion sensor on the market. With a 100-foot lead and the VMD202-R programmer, this cutting-edge sensor ensures ease of installation and offers versatile functionality. The compact design of the probe and its integrated electronics make it ideal for discreet installation near your driveway, making it invisible to potential intruders or vandals. The VMD202 is designed for simple setup with 10 adjustable sensitivity levels, all of which can be easily programmed using the VMD202-R remote control. These settings are stored in non-volatile memory, so they are preserved even after the remote is disconnected, streamlining future operations. Installers will appreciate the VMD202’s design, which allows for easy adjustments without the need for multiple remotes. By disconnecting a jumper and using the remote to adjust the settings, users can customize the sensor, which helps reduce costs and protect against unauthorized tampering. With a low standby current of just 250uA, the VMD202 is well-suited for solar-powered setups. Additionally, a single 9V battery can power the sensor for up to six months, making it an excellent choice for locations without direct access to a power supply. EMX has set a new standard in driveway security with the VMD202, combining reliability, convenience, and peace of mind for property owners. For more details or to obtain the EMX VMD202 Driveway Sensor Probe, please reach out to EMX sales or visit the provided link for the installation guide. Enhance your driveway security with the most innovative sensor in the EMX product line – the VMD202. Features: The sensor probe is buried underground, making it undetectable to intruders or vandals.
Compatible with a wide range of power supplies, including 9V to 35V AC or DC. Its low standby current of 250uA is ideal for solar applications.
In areas without a power source, a single 9V battery can operate the VMD202 for up to six months.

EMX VMD202 50FT wire free exit loop sensor

sensor offers 50-foot range, easy installation, and solar compatibility—ideal for Seattle gates.

This two-button remote allows for flexible gate control, ideal for Seattle residents who want a secure, efficient access solution for dual gates or access points. overview:
Improve the security and ease of use for your garage door or gate opener with the LiftMaster 2-Button Security+2.0® Learning Remote Control 892LT. This advanced remote offers a secure, user-friendly solution for managing your access control system. Includes: Directional visor clip
Features: Perfect for gated communities: one button controls the gate operator, while the other operates the garage door opener.
Each button is fully compatible and programmable with Security+ 2.0™ Tri-Band (310/315/390 MHz), Security+® 315 MHz, or Security+® 390 MHz.
Both buttons are capable of cloning any LiftMaster® DIP code remote (models 811LM, 61LM, or 361LM).
Technical Specifications: GDO Learn Button Color Compatibility: Green, Orange/Red, Purple, Yellow Circle
Number of Buttons: 2
Compatible Code Types: Billion code 390 MHz, Security+ 390 MHz, Security+ 315 MHz, Security+ 2.0 Tri-Band
Warranty: 1 Year

892 double button remote control

The LiftMaster 892LT 2-button remote offers secure, flexible access for dual gates or garage doors with Security+2.0.

The iron gooseneck mount provides secure and accessible keypad installation, ideal for Seattle’s residential and business gate setups. overview: 2" x 2" Heavy-duty Steel Frame, 48" Tall
Pre-drilled for fast and convenient installation of most keypads
Corrosion-resistant powder-coated steel construction
Welded bottom plate and cover to protect anchors from exposure

iron gooseneck for keypad

Heavy-duty 2" x 2" iron gooseneck mount, offering secure, corrosion-resistant keypad installation for Seattle gates.

Durable and efficient, the LA400 single gate opener for medium size swing gates enhances security with smooth operation, ideal for Seattle homes. This system brings the best in swing gate technology to your property.
package includes safety photo eye, control box with backup batteries, brackets and one arm. overview:
The LiftMaster LA400PKGUL is a comprehensive swing gate opener kit designed for easy setup and reliable performance. This system is capable of handling up to 100 cycles per day, with multiple features that enhance its efficiency and durability. Includes: Complimentary Digital Multimeter
Manufacturer's Warranty
Operator Warranty: 2 Years
Technical Specifications: Power Supply: 24VDC, Solar Power, or 120/230V Single Phase (Standard control box)
Accessory Power: 24VDC 500mA output, both switched and unswitched power
Monitored Safety: 3 main board and 3 optional expansion board inputs
UL Usage Classification: I, II, III, IV
Gate Travel Speed: 90-degree swing in 17-17 seconds
Construction Features: P3 Motor®: Continuous-duty 24VDC motor
Duty Cycle: 100 cycles per day
Chassis: Made with 1/4" gold zinc-plated steel for rust protection
Worm Gear Reduction: High-precision all-metal gear drive
Operator Weight: Actuator arm 19 lbs; control box 13 lbs. Includes (2) 7Ah batteries
Recommended Gate Capacity: Suitable for gates up to 16 ft. in length or weighing up to 850 lbs.
Product Overview: The LiftMaster LA400PKGUL swing gate opener package offers great value, including a primary arm (LA400DC), a backup battery with control board and a monitored retro-reflective photo eye. This gate opener is engineered for superior performance, with key features such as: Security+ 2.0 Radio Receiver: Encrypts the gate’s signal, protecting against interference and enhancing security.
Safety Reversing System: The photo eye detects obstacles in the gate’s path, ensuring it doesn’t close on vehicles or people.
App Integration: Compatible with the myQ smartphone app, allowing you to control and monitor your gate remotely. You can open/close the gate, get real-time notifications, and manage it from anywhere.
Quick Close Feature: Requires an optional expansion board, enabling fast gate closure after a vehicle passes, preventing unauthorized tailgating.
Built to last, the LiftMaster LA400PKGUL features a durable 24VDC continuous-duty motor housed in cast aluminum, and the chassis is gold zinc-plated for rust resistance. This gate opener is designed to handle up to 100 cycles daily. Important Notes: Outswing Applications: If using the system in an outswing setup, the LiftMaster PUSH TO OPEN Bracket Kit Model 50-19503 is required but not included. This bracket kit comes with a three-piece set and hardware. Please consider adding this option if needed. See the “Product Literature Tab” for more details.
Additional Features/Accessories: For more programming options or accessories such as external loops, plug-in loops, auxiliary relays, and inputs, please add the Model K1D8387-1CC Expansion Control Board.
Warning: Manufacturer capacities are calculated without accounting for wind conditions. Strong winds can affect the gate’s operation and potentially cause damage. If you live in a windy area, we recommend using a pad-mount operator like the CSW24UL. For guidance on choosing the right operator for your climate, please contact us. Please note that wind-related damage is not covered under warranty.

LA400 single swing gate system

The LiftMaster LA400 single swing gate opener offers reliable performance and security for medium-sized gates. Ideal for Seattle homes, it supports gates up to 16 ft and 850 lbs.

Perfect for private residences, the Cellgate Watchman W410 provides advanced cellular intercom features. Secure your home with remote monitoring and access for unmatched protection and convenience. compatible for all new gate openers. overview:
Easily control the gate through a mobile app
Self-activation by the customer
1 built-in 26-bit Wiegand port
Supports 5,000 local access codes and 64,000 non-local access codes
All transaction data and images are stored securely in the TrueCloud portal
Can dial up to 9 phone numbers in 3 different tiers
Includes Verizon LTE service, with no additional VoIP fees required
Comes with a Verizon SIM card
Voice Mail Intelligence (VMI) feature avoids voicemail and continues the call routing process
Notifies when the gate remains open for more than 3 minutes
Web-based TrueCloud portal for easy administration
2-Year Manufacturer Warranty included
Control timing and authorization with friendly app and could-based service.
*require monthly fees for cellular features*

residential intercom cellular system Cellgate Watchman w410

Advanced gate security with app control, remote monitoring, and Verizon LTE support

For robust gate access control, the KPW250 keypad supports multiple codes, ideal for businesses and multifamily properties in the Seattle-Tacoma area. Secure, user-friendly, and designed for high-traffic environments. overview:
Description
Engineered to provide exceptional performance in demanding conditions, the LiftMaster KPW250 offers a modern and streamlined access solution that's incredibly easy to install and operate. Ideal for larger commercial spaces or secure entrances for small businesses. Key Features: Compatible with Security+ 2.0, Security+, and Linear Multi-Code 300 MHz systems
Accommodates up to 250 permanent PINs and 10 temporary PINs, providing flexibility for multiple users in commercial environments; temporary PINs can be set for 1 to 9 uses
Offers the ability to remove individual PINs without affecting access for other users
Electronics are fully sealed and compliant with NEMA 4X water protection standards
A high-performance 5-year lithium battery ensures reliability in cold temperatures (based on 25 activations per day)
Durable zinc-alloy front cover designed to withstand harsh conditions
Blue backlit metal keypad facilitates ease of use in low-light environments
Fully enclosed internal antenna provides enhanced protection against vandalism and weather elements
Can be easily mounted on surfaces or a standard pedestal

KPW250 keypad for multiple code and commercial applications

Durable keypad for secure, multi-user access, perfect for high-traffic commercial gates.
