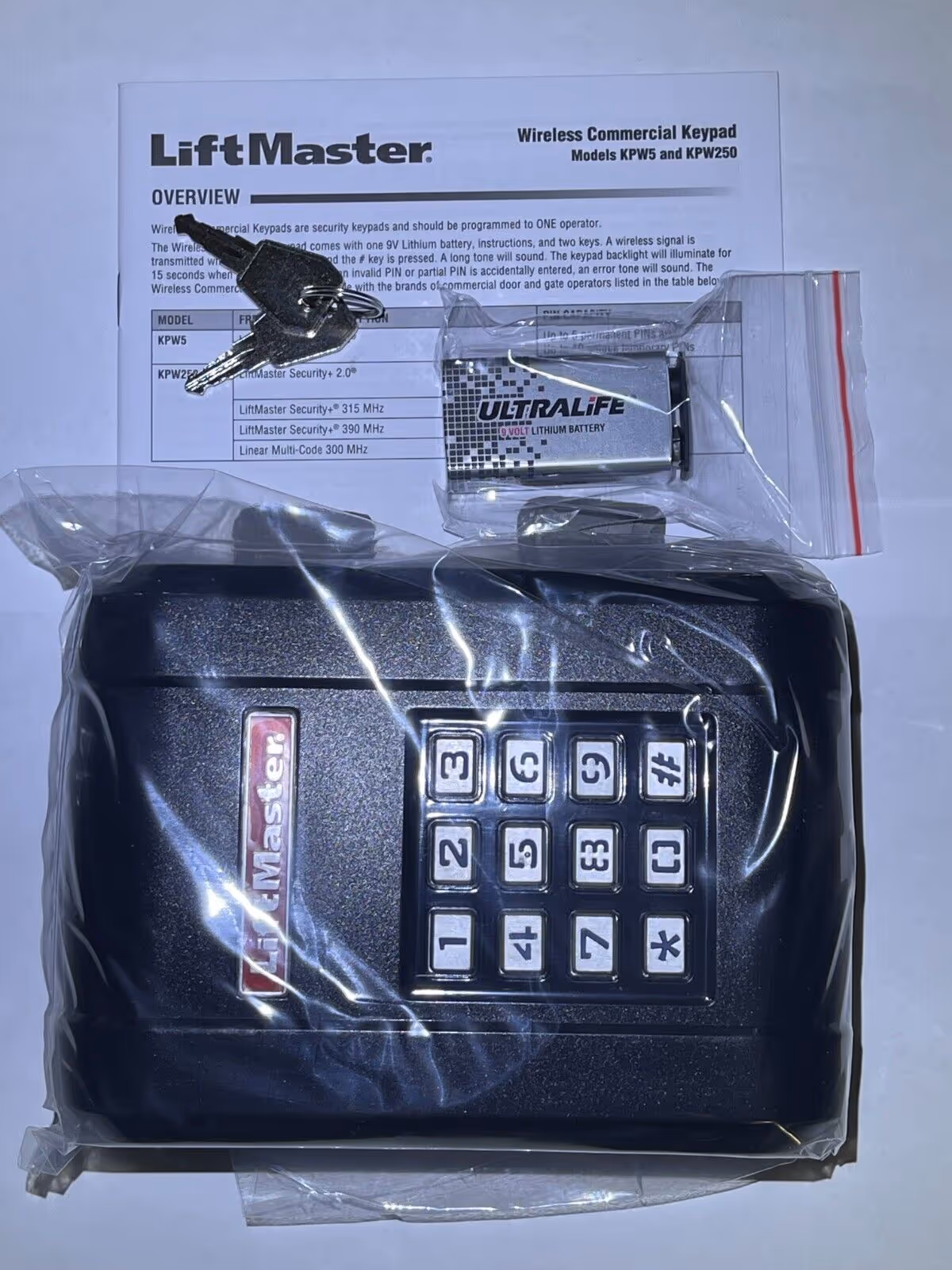

KPW5 simple punch keypad

The KPW5 keypad provides durable, straightforward access control, ideal for residential gate installations. This reliable solution blends simplicity with security for peace of mind, tailored to Seattle’s homeowner needs.

overview:

The LiftMaster KPW5 is designed to provide exceptional performance in challenging environments, offering a modern, streamlined access solution that's easy to install and operate. It’s ideal for residential gate access as well as smaller commercial gate and door applications.

Key Features:

Compatible exclusively with Security+ 2.0 operators manufactured after 2012

Equipped with 5 permanent PINs and 10 customizable temporary PINs, making it perfect for both residential and small commercial uses; temporary PINs can be configured for 1 to 9 uses

Allows for the removal of a single PIN while maintaining access for other users

Sealed electronics meet NEMA 4X water protection standards

Industry-leading 5-year lithium battery ensures reliable performance even in colder climates (based on 25 activations per day)

Durable high-impact polycarbonate front cover, ideal for tough outdoor conditions

Blue backlit metal keypad provides ease of use in low-light settings

Fully enclosed internal antenna offers enhanced protection against vandalism and the elements

Easy to install either surface-mounted or on a standard pedestal

LiftMaster KPW5 Programming Instructions

Before performing any programming steps, ensure the Wireless Commercial Keypad is in programming mode. The keypad's backlight will remain illuminated when in programming mode. If an incorrect code is entered while in programming mode, an error tone will sound, but programming mode will remain active. If there is no activity for 60 seconds, the keypad will exit programming mode automatically.

To operate the Wireless Commercial Keypad, you will need the 6-digit Master Code, which prevents unauthorized system access. The factory default code is 888888, but it is recommended to change this to a unique code for security.

Important: An error tone will be triggered if you exceed the maximum number of PINs or attempt to program a PIN that is already stored in memory.

Programming to the Operator: Before programming the gate operator, both the Master Code and a PIN must be set.

‍
