LA400 double swing gate openers system
powerful dual swing gate opener with backup battery, safety features, and app integration.
The LA400 double swing gate opener for medium size swing gates, brings strength and elegance to your driveway, handling heavy-duty swing gates. Designed for Seattle’s variable weather, it’s a powerful solution for residential properties.

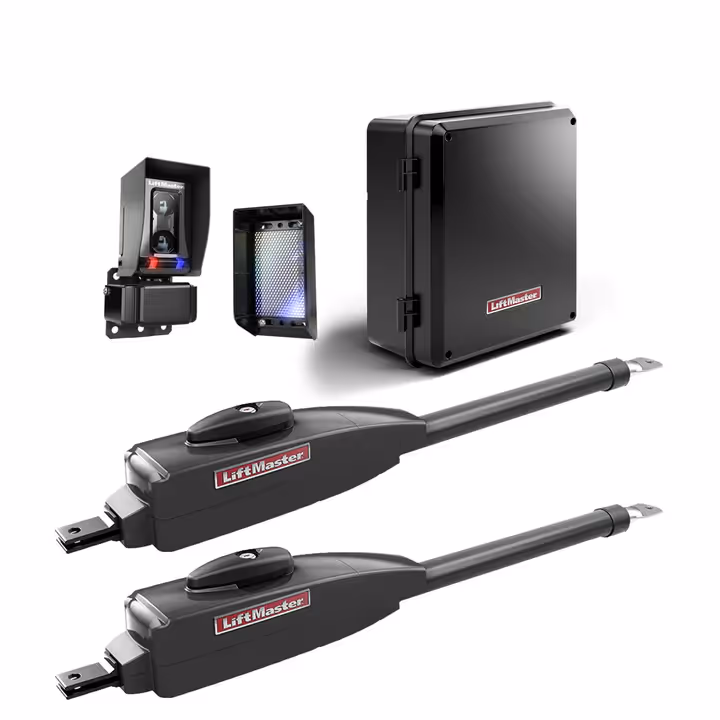

package includes safety photo eye, control box with backup batteries, brackets and 2 arms.
overview:
The LiftMaster LA400PKGUL offers a comprehensive dual swing gate opener kit, equipped with all necessary components for easy installation. It is constructed using LiftMaster’s trusted materials and is designed to handle larger gates, supporting up to 850 lbs.
Performance Specifications
Power Source: 24VDC or solar power, with a standard 120/230V single-phase control box
Accessory Power: 24VDC, 500mA output, with both switched and unswitched power options
Safety Monitoring: 3 main boards and 3 optional expansion boards for safety features
UL Classification: I, II, III, IV
Gate Speed: Opens 90 degrees in 17-17 seconds
Construction Specifications
P3 Motor®: 24VDC motor designed for continuous duty
Operator Duty Cycle: Rated for 100 cycles per day
Chassis: Made with 1/4" gold zinc-plated steel to prevent rusting
Worm Gear: Precision-machined all-metal gear drive for reliable operation
Operator Weight: Actuator arm weighs 19 lbs, standard control box weighs 13 lbs, including (2) 7Ah batteries
The LiftMaster LA400PKGUL is a dual swing gate operator featuring dependable performance and several built-in features. This complete kit includes everything you need to begin your installation, such as a primary and secondary arm, battery backup with control board and a monitored retro-reflective photo eye.
Notable features of this dual swing gate system include:
Anti-Tailgate: The optional anti-tailgate feature ensures the gate quickly closes behind vehicles, preventing unauthorized access.
Security+ 2.0 Technology: Encrypts the gate’s signal to protect against interference, while extending the range for remote control use.
Safety Photo Eye: The retro-reflective photo eye detects obstructions, preventing damage to vehicles or injury to individuals by reversing the gate.
App Integration: Use the myQ app to control and monitor the gate opener remotely, allowing you to close gates with just a tap.
Solar-Ready: The system can be equipped with solar panels (sold separately), providing additional backup or primary power when needed.
Crafted for durability, this gate opener boasts a heavy-duty 24VDC continuous-duty motor, a robust cast aluminum housing, and is rated for 100 cycles per day. It supports gates up to 16 feet long or weighing up to 850 lbs. The battery backup ensures continued operation during power outages.
Additional Information:
Outswing Applications: For gates that swing outward, the LiftMaster PUSH TO OPEN Bracket Kit Model 50-19503 is required (not included). This bracket kit includes a three-piece bracket set and hardware. Please select this option below if needed. Details can be found in the “Product Literature Tab.”
Advanced Features: For additional features such as external loops, auxiliary relays, or expansion control boards, you may need the Model K1D8387-1CC Expansion Control Board.
Important Note: Manufacturer capacity ratings are calculated without considering wind load. Gate performance can be significantly affected by wind conditions, potentially causing damage. If your area experiences frequent high winds, consider using a pad mount operator like the CSW24UL. For assistance in selecting the right operator based on local weather conditions, contact us. Wind damage is not covered by warranty.
